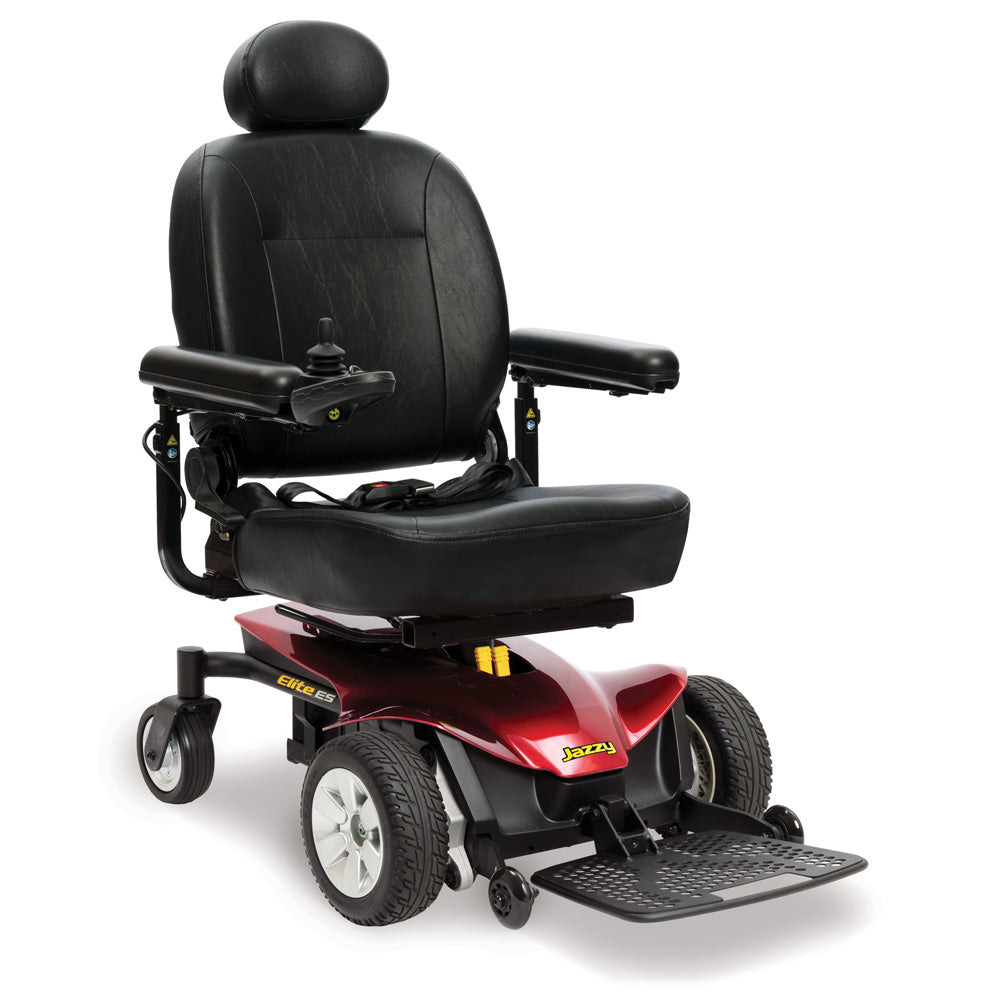

Jazzy® Elite ES
An experience so superior, it can only be elite. The Jazzy® Elite ES features large, front-drive wheels to absorb the bumps and uneven surfaces of everyday life. The comfortable, high-back seat gives you the support you need all day, every day.
Jazzy® Elite ES Features:
- 300 lbs. weight capacity
- Up to 4 mph
- 24.75" turning radius
- Up to 13.5 miles per charge
- In-line, front-wheel drive technology provides tight turns around corners
- Comfortable, depth-adjustable, limited recline high-back seat with headrest
- 40-apm, PG GC 3 controller
- Optimal indoor maneuverability in small spaces
- Large front wheels for extra absorption over obstacles
- Available in Candy Apple Red
- HCPCS Code: Group 2: Standard (K0822/K0823)
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
Jazzy® Elite ES Specifications
| CATEGORY | SPECIFICATION |
|---|---|
| Model |
Jazzy® Elite ES
|
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24.75" |
| Width1 | 22.75" |
| Length1,2 | 34.75"/41" (with footplate) |
| Maximum Speed3 | Up to 4.0 mph |
| Ground Clearance1 | 1.85" at motors |
| Front Wheels | 3" solid anti-tips |
| Drive Wheels | 9" solid |
| Rear Wheels | 6" solid casters |
| Drivetrain | Two motor, in-line, front-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension Type | Limited |
| High-Back Seat (max. size) | 20"W x 20"D |
| High-Back Seat-to-Floor Range | 21.5” – 23.5” |
| Standard Electronics | 40A, PG GC3 |
| Battery Size (2 required) | 12 volt, U-1 |
| Standard Battery Charger | 3.5A, off-board |
| Per-Charge Range3,6 | Up to 15 miles |
| Battery Weight5 | 25 lbs. each |
| HCPCS | Group 2: Standard (K0822/K0823) |
| Weight of Heaviest Piece4 | 69 lbs. |
| Standard Seat Weight | 50.2 lbs. (comfort, high-back) |
| Standard Seat Size | 16" x 16"-18" 18" x 18"-20" 20" x 18"-20" |
| Warranty | 5-year limited on frame; 13-month limited on electronics; 13-month on drive motors; 13-month limited on batteries. |
|
Notes: 1 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of + or - 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. 2 Without front riggings. 3 Varies with user weight, terrain, battery type, battery condition and tire pressure. 4 Does not include seat or battery weights. 5 Battery weight may vary based on manufacturer. 6 Tested in accordance with ANSI/RESNA, WC Vol. 2, Section 4 and ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Testing conducted at maximum weight capacities. This specification can be subject to a variance of +10%, -5%. |
|
| The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. | |
Jazzy Elite ES Testing Standards &
Meeting and Exceeding High Standards for your Peace of Mind.
Your Pride product has undergone thorough product testing to ensure safety, durability and performance.
Our power chairs, scooters and lift chairs are Food & Drug Administration (FDA) approved medical products that require specific testing prior to release for public use.
The testing requirements accepted by the FDA were developed by the American National Standards Institute/Rehabilitation Engineering & Assistive Technology Society of North America (ANSI/RESNA).
The tests are conducted in accordance with the requirements of the ANSI/RESNA Test Standards and complement an additional stringent testing regiment developed by Pride's Research & Development Team.
All products have passed, and in many cases, exceeded test criteria set forth, assuring the high level of quality synonymous with Pride.
Some of the items our testing criteria include are:
- Product Stability & Brakes Effectiveness Tests
- Fatigue & Impact Strength Verification Tests
- Overall Product Performance Verification
- Dimensional Requirement Compliance
- Product Durability & Reliability Testing
- Material Protective Coating Testing Verification
- Misuse and Abuse Testing
- Ergonomic Verification
- Environmental Testing for Adverse Weather Operation Conditions
- Electronic Systems Performance and Durability
- Chemical and Bio-Contamination Analysis Testing for Toxicity Verification
- Cal 117 Flammability Test Compliance for Seating Foam and Fabric Components
- UL94VO Flammability Testing for Compliance of Plastic Components
- Electromagnetic Compatibility (EMC)
Warranty
- 5-Year limited warranty on frame
- 13-month limited warranty on electronics
- 13-month limited warranty on drive motors
- 13-month limited warranty on batteries
